SOLUTION

FEATURES:

Features:This model is designed for multi-lane stick pouches, especially for granule and powder. The machine can mount the film, devide them vertically into cylinder-shaped pouches, fill and pack automatically. The operation is simple and safe. Both the size and style of pouches are adjustable. The photoelectric device controls accurately. Through using sliding or auger metering device, the filling volume of each line becomes adjustable. This machine can be used on the batch-produce and mass-produce occasion.

APPLICATION:

Especially applicable to packaging of all kinds of powder,granule etc.

SPECIFICATIONS:

Filling Product	Powder & Granule
Pouch Pattern	Stick type, Lap or Fin Type
Pouch Height Range	50-170mm
Pouch Width	15-65mm
Optional Item	Auger Filler/Sliding Weigher
Number of lanes	2-12 lanes
Packaging Capacity	25-60 pouches per minute(1-lane)×lane amount (depending on pouch height,film composition,product property,etc)
Filling Capacity	0.5-50ml (depending on product property and filling device to be used)
Applicable Film Width	Maximum 500mm
Maximum Film Roll Dia	￠400mm
Power Consumption	3-phase 380V 5.5kw(6 lanes)
Air Consumption	1000L/min（0.5-0.6Mpa）
Machine Dimensions	1530mm(L)×2000mm(W)×2600mm(H)
Machine Weight	Approx.1500kg

PACKAGING STYLE:

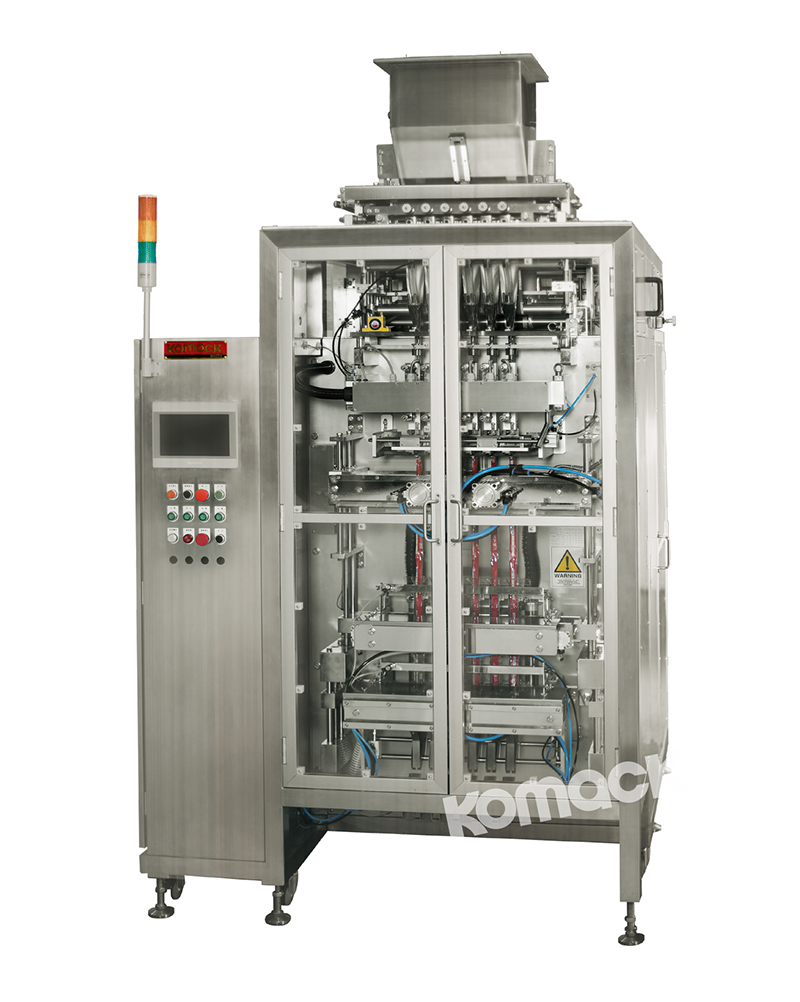

KNS-500 MULTI-LANE STICK TYPE AUTOMATIC POWDER & GRANULE FILLING & PACKAGING MACHINE
